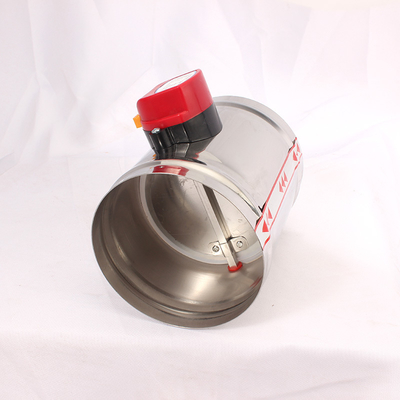

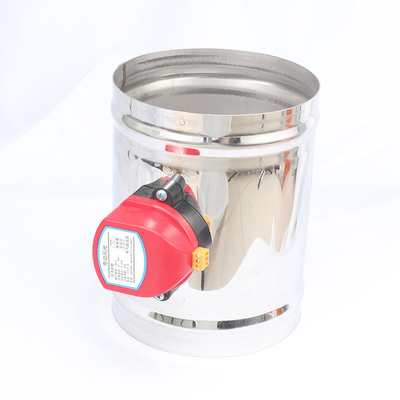

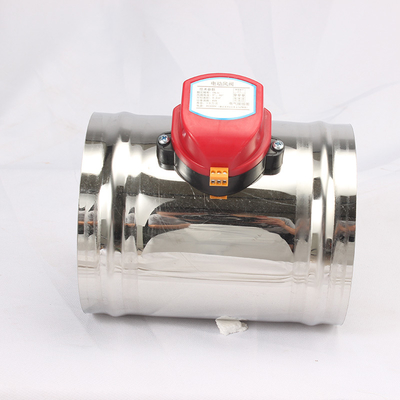

Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning

Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning
Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning

Ampliación de imagen :  Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning

Datos del producto:
Lugar de origen: China
Nombre de la marca: WD
Certificación: ISO
Número de modelo: Amortizador de aire
Pago y Envío Términos:
Cantidad de orden mínima: 50 piezas
Precio: USD 3.5-6.8/piece
Detalles de empaquetado: Casilla de madera
Tiempo de entrega: 15-20 días
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 10000 piezas por mes

Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning

descripción
Nombre del producto: Amortizador motorizado Diámetro:: 51 a 400 mm
Alturas: 150mm, 190mm Tipo: Amortizador de aire eléctrico
Resaltar:

stainless steel HVAC air damper

,

electric zone damper 51-400mm

,

duct zoning damper for HVAC

Stainless Steel HVAC Zoning Control System Motorized Damper
Product Specifications
Attribute Value
Product name Motorized Damper
Diameter 51-400mm
Height 150mm, 190mm
Type Electric Air Damper
Product Description

An air damper is a complex mechanism with many moving elements. Their main components are the blades, which adjust their position to control airflow. In addition, dampers include frames, linkages, axles, bearings, seals, blade pins, actuating motors, flanging, jackshafts, and sleeves, among other components.

Electric Air Damper Specifications
Commodity Outer Diameter Height Flange width Remark
Electric Air Damper 51mm 150mm 25mm silicone seal
Electric Air Damper 63mm 150mm 25mm silicone seal
Electric Air Damper 75mm 150mm 25mm silicone seal
Electric Air Damper 80mm 150mm 25mm silicone seal
Electric Air Damper 100mm 150mm 25mm silicone seal
Electric Air Damper 125mm 190mm 25mm silicone seal
Electric Air Damper 150mm 190mm 25mm silicone seal
Electric Air Damper 200mm 190mm 30mm silicone seal
Electric Air Damper 250mm 240mm 30mm silicone seal
Electric Air Damper 300mm 290mm 30mm silicone seal
Electric Air Damper 350mm 340mm 30mm silicone seal
Electric Air Damper 400mm 390mm 30mm silicone seal
Electric Air Damper Features
  • Can be equipped with a temperature controller, can be used with a series of thermostats, automatic switch, so that the controlled environment is effectively controlled, so that energy-saving comfort and no noise.
  • Both the valve opening and the valve closing need to be energized, and the actuator will automatically shut off after completing an action.
  • An action time is about 10 seconds.
  • This damper is suitable for controlling the air volume from full flow to shut off.
  • The damper is constructed with polished stainless steel and come with aluminum valve plate.
  • It can work with thermostat, open and close automatically.
Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning 0 Stainless Steel Electric Air Damper 51-400mm for HVAC Zoning 1
